In the competitive construction industry, selecting the right equipment can significantly impact project efficiency, timeline, and profitability. The SANY SY215C excavator has emerged as a preferred choice for contractors seeking a versatile, reliable, and cost-effective solution for medium to large-scale projects. As the authorized SANY dealer in the Philippines, Premier Heavy Equipment offers this powerful machine to construction professionals looking to enhance their operational capabilities.

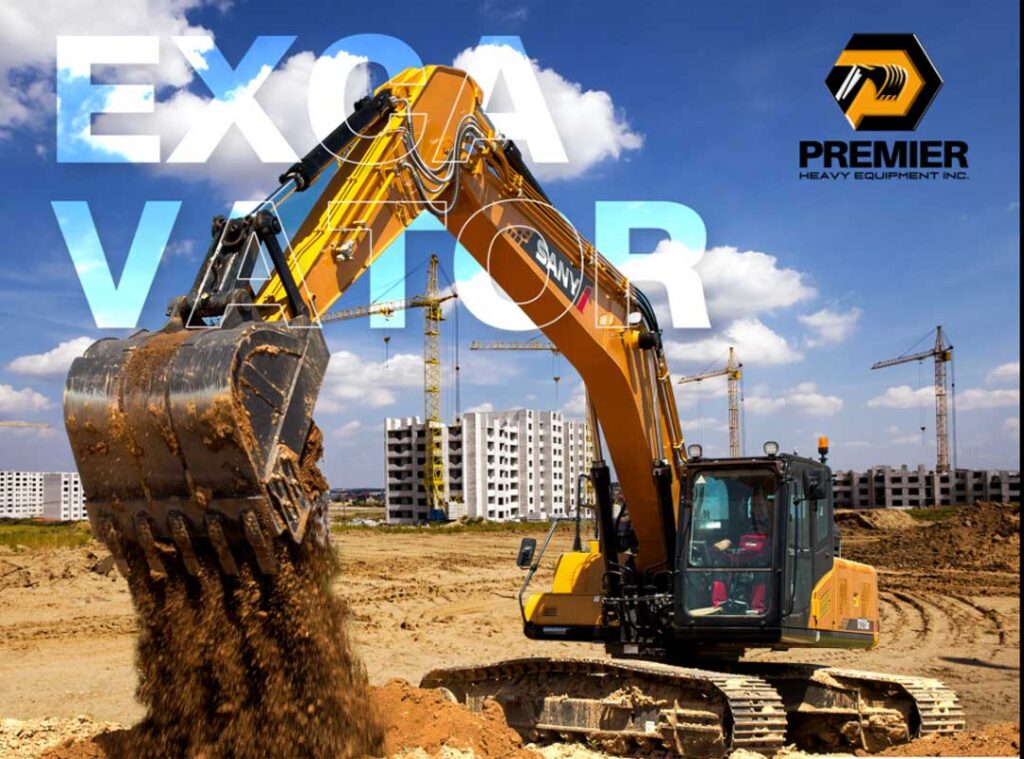

The SY215C excavator represents an ideal balance of power, efficiency, and maneuverability, making it suitable for diverse applications ranging from general construction to specialized tasks in challenging environments. This comprehensive guide explores the key features, specifications, and advantages of this remarkable machine, helping you determine if it’s the right fit for your operational requirements.
What is the operating weight of the SANY SY215C excavator?
The SANY SY215C excavator has an operating weight of approximately 21,500 kg (47,400 lbs), positioning it strategically in the popular 21-22 ton class of tracked excavators. This weight classification represents an optimal balance between power and maneuverability, offering substantial digging capabilities while remaining transportable between job sites without specialized heavy hauling equipment.
The operating weight includes:
- Standard undercarriage with 600 mm triple grouser track shoes
- 5.7-meter standard boom
- 2.9-meter arm
- 1.1 m³ general-purpose bucket
- Full fuel tank
- Operator cabin with protective structures
- Standard counterweight
This carefully engineered weight distribution ensures excellent stability during excavation and lifting operations. The substantial counterweight provides balanced operation when working at maximum reach, while the undercarriage design distributes weight evenly to optimize ground pressure and stability on various terrains.
For contractors concerned about transportation logistics, the SY215C excavator can typically be transported on standard lowboy trailers in compliance with most regional transportation regulations, though specific permit requirements may vary by location. The machine can also be configured with narrower track shoes (500 mm) to reduce overall width for transportation purposes if required.
What are the performance specifications of the SY215C excavator?
The SANY SY215C excavator delivers impressive performance metrics that make it suitable for a wide range of applications, from urban construction to infrastructure development. Here’s a detailed breakdown of its performance specifications:
Engine and Power System
- Engine Model: Cummins QSB6.7
- Rated Power: 129 kW (173 HP) at 2,000 rpm
- Maximum Torque: 763 Nm at 1,500 rpm
- Displacement: 6.7 L
- Emission Standard: Tier 4 Final/EU Stage V compliant
- Fuel Efficiency: Advanced electronic control unit with multiple work modes
- Cooling System: High-capacity system designed for tropical conditions
The Cummins QSB6.7 engine provides the SY215C excavator with reliable power delivery even under heavy loads and in high-temperature environments. This engine is renowned for its durability and fuel efficiency, with thousands of operating hours before major service is required.
Hydraulic System
- Main Pump: Variable displacement axial piston pump
- Maximum Flow: 2 × 212 L/min
- Relief Pressure: 34.3 MPa
- Control System: Intelligent SLSS (SANY Load Sensing System)
- Hydraulic Oil: Long-life formulation with 4,000-hour change interval
- Auxiliary Circuits: Standard configuration for attachments
The advanced hydraulic system of the SY215C excavator delivers precise control and powerful performance, allowing operators to handle complex tasks with confidence. The load-sensing technology automatically adjusts hydraulic flow based on the demands of the operation, optimizing both performance and fuel efficiency.
Working Parameters
- Maximum Digging Depth: 6,600 mm
- Maximum Digging Reach: 9,930 mm
- Maximum Dump Height: 6,760 mm
- Bucket Digging Force: 150 kN
- Arm Digging Force: 105 kN
- Swing Speed: 11.3 rpm
- Maximum Travel Speed: 5.4 km/h
These performance parameters position the SY215C excavator as an extremely capable excavator that can handle everything from deep excavation to precise grading. The powerful bucket and arm forces enable efficient operation in hard soil conditions and even light rock excavation without the need for specialized attachments.
How does the SY215C excavator compare to similar excavators in its class?
When evaluating excavators in the 21-22 ton class, contractors have several options from different manufacturers. The SANY SY215C offers compelling advantages that make it an attractive choice when compared to similar machines:
SANY SY215C Excavator vs. Competitor A (Similar European Model)
- Purchase Price: The SY215C typically offers 15-20% cost savings on initial investment
- Engine Power: Comparable power output with similar torque profiles
- Hydraulic System: Both feature advanced hydraulics, with the SY215C providing slightly higher pump flow rates
- Durability: The SY215C features reinforced components in high-stress areas
- Technological Features: The European competitor may offer more advanced telematics, while the SY215C provides better value in core performance features
- Warranty Coverage: Similar terms with Premier Heavy Equipment offering more comprehensive local support
SANY SY215C Excavator vs. Competitor B (Similar Japanese Manufacturer)
- Operating Weight: Nearly identical at approximately 21.5 tons
- Digging Performance: The SY215C offers comparable digging forces
- Fuel Efficiency: The SY215C typically consumes 5-8% less fuel in similar applications
- Cabin Design: Both feature excellent operator environments with slight variations in control layout
- Serviceability: The SY215C offers more accessible maintenance points
- Parts Availability: Through Premier Heavy Equipment, faster parts delivery in the Philippines market
SANY SY215C Excavator vs. Competitor C (Similar American Model)
- Initial Cost: 10-15% lower acquisition cost for the SY215C
- Operating Costs: More affordable parts pricing with similar maintenance intervals
- Build Quality: Comparable quality standards with different design approaches
- Technology Integration: Both offer modern control systems with different emphasis on features
- After-Sales Support: Premier Heavy Equipment provides more comprehensive local support in the Philippines
- Attachments Compatibility: Both machines accept a wide range of industry-standard attachments
This comparative analysis demonstrates that while each manufacturer has its strengths, the SANY SY215C delivers exceptional value with its combination of performance, reliability, and cost-effectiveness, particularly when supported by Premier Heavy Equipment’s dedicated service network in the Philippines.
What are the key applications for the SY215C excavator?
The SANY SY215C excavator is engineered to excel in a diverse range of applications, making it a versatile addition to any contractor’s fleet. Its 21.5-ton classification provides the ideal balance of power and agility for various project types:
General Construction
In building construction and site development, the SY215C Excavator performs exceptionally in:
- Foundation excavation for commercial and residential buildings
- Mass excavation for basements and underground structures
- Site grading and preparation
- Material handling and loading operations
- Utility trenching and installation
The SY215C’s balanced design makes it particularly well-suited for general construction projects where versatility and reliability are essential.
Infrastructure Development
For infrastructure projects, the SY215C excavator delivers consistent performance in:
- Road and highway construction
- Bridge foundation work
- Drainage system installation
- Culvert placement
- Embankment construction
- Slope stabilization
- Railway construction support
The robust build quality and powerful hydraulics enable the SY215C excavator to maintain productivity even in challenging soil conditions commonly encountered in infrastructure projects across the Philippines.
Mining and Quarrying
In small to medium mining operations and quarries, the SY215C excavator can handle:
- Overburden removal
- Material loading into haul trucks
- Bench development
- Access road construction and maintenance
- Secondary breaking operations with hammer attachments
While not replacing larger dedicated mining equipment, the SY215C excavator provides excellent capability for auxiliary tasks and in smaller operations where specialized mining equipment would not be cost-effective.
Urban Renewal and Demolition
The SY215C excavator is particularly effective in urban environments where:
- Selective demolition requires precision control
- Space constraints limit equipment size
- Noise and emissions regulations are strict
- Multiple tasks must be performed with a single machine
- Transportation between sites is frequent
With appropriate attachments, the SY215C excavator can handle demolition tasks, material sorting, and site preparation in densely developed areas.
Landscaping and Environmental Projects
For environmental restoration and landscaping projects, the SY215C offers:
- Pond and waterway construction capabilities
- Precise grading for drainage management
- Vegetation and stump removal
- Riprap and erosion control installation
- Material placement for landscape features
The smooth hydraulic control and multiple working modes make the SY215C ideal for projects requiring both power and finesse.
This versatility across multiple applications makes the SY215C an excellent choice for contractors who handle diverse project types or rental companies seeking to maximize equipment utilization and return on investment.
What are the standout features of the SY215C cabin and operator environment?
The SANY SY215C excavator is designed with operator comfort, safety, and productivity as key priorities. The spacious cabin incorporates numerous features that enhance the operating experience during long work shifts:
Cabin Design and Comfort
- ROPS/FOPS Certification: Meets international safety standards for operator protection
- Pressurized Environment: Positive-pressure system keeps dust and debris outside
- Climate Control: High-capacity air conditioning and heating system with multiple vents
- Noise Reduction: Sound-dampening materials reduce operational noise to 70 dB
- Vibration Dampening: Advanced mounting system isolates the cabin from machine vibrations
- Ergonomic Seating: Air-suspension seat with multiple adjustment points and heating option
- Visibility: Large glass surface area with minimal obstructions provides excellent all-around visibility
- Entry/Exit: Wide door opening and well-placed handrails for safe cabin access
Control Systems and Instrumentation
- Intuitive Control Layout: Pilot-operated joysticks with customizable sensitivity
- 10-inch LCD Monitor: High-resolution color display with machine information and camera views
- Work Mode Selection: Multiple modes to optimize performance for specific tasks (Power, Standard, Economy)
- Automatic Idle Control: Reduces fuel consumption during operational pauses
- Maintenance Monitoring: Real-time alerts for service requirements
- Rear-view and Side-view Cameras: Standard equipment for enhanced safety
- LED Work Lights: Excellent illumination for night operations
- Bluetooth Connectivity: Hands-free communication capability
- USB Charging Ports: Convenient power for operator devices
Safety Features
- Emergency Shut-off: Easily accessible engine shut-down switch
- Anti-Slip Surfaces: Textured walkways and steps to prevent falls
- Travel Alarm: Audible warning during travel operations
- Swing Alarm: Alerts nearby workers when the machine is rotating
- Fire Extinguisher: Standard equipment within easy reach
- Emergency Escape: Secondary exit routes clearly marked
- Safety Locks: Hydraulic lockout system prevents unintended movement
- Impact Protection: Reinforced cabin structure exceeds industry standards
These cabin features combine to create an operating environment that enhances productivity by reducing operator fatigue while maintaining high safety standards. The thoughtful design reflects SANY’s understanding that comfortable, confident operators are more productive and make fewer errors during challenging operations.
What attachments are compatible with the SY215C excavator?
The SANY SY215C excavator is designed with versatility in mind, supporting a wide range of attachments that expand its functionality beyond standard digging operations. The machine features auxiliary hydraulic circuits as standard equipment, with proportional controls that allow precise operation of various hydraulic attachments.
Digging and Earthmoving Attachments
- Buckets
- General purpose buckets (0.9-1.3 m³)
- Heavy-duty buckets for abrasive materials
- Rock buckets with reinforced cutting edges
- Ditching buckets for finishing and grading
- Skeleton buckets for material separation
- Thumbs
- Hydraulic thumbs for material handling
- Rigid thumbs for simpler applications
- Progressive linkage designs for maximum versatility
- Quick Couplers
- Hydraulic quick-change systems
- Pin-grabber style couplers
- Wedge-lock safety systems
- Compatible with industry-standard mounting patterns
Demolition and Breaking Attachments
- Hydraulic Hammers
- Medium to heavy-duty breakers (1,800-3,500 joules)
- Silenced models for urban applications
- Various tool options for concrete, rock, and asphalt
- Pulverizers and Crushers
- Concrete pulverizers for primary demolition
- Secondary crushers for material processing
- Reinforcement cutting capabilities
- Shears
- Steel cutting shears for structural demolition
- Scrap processing configurations
- Rotation functionality for precise positioning
Special Application Attachments
- Vibratory Compactors
- Plate compactors for trench compaction
- Variable frequency settings for different materials
- Isolated mounting to protect the excavator
- Augers
- Heavy-duty earth augers with various diameter options
- Rock auger configurations for harder materials
- Extension shafts for increased depth capabilities
- Grapples
- Multi-purpose grapples for handling diverse materials
- Sorting grapples for recycling operations
- Orange-peel configurations for bulk material handling
- Timber/log grapples for forestry applications
- Tiltrotators
- Advanced attachment providing 360° rotation and 40° tilt
- Dramatically increases machine versatility and precision
- Ideal for complex grading and positioning tasks
Premier Heavy Equipment can assist with sourcing and installing the appropriate attachments for your specific applications. Our technical team can also ensure proper hydraulic setup, including flow rate adjustments and pressure settings to optimize attachment performance while protecting the base machine from potential damage due to improper configuration.
What are the maintenance requirements for the SY215C excavator?
The SANY SY215C excavator is designed for ease of maintenance, with accessible service points and logical component layout that minimizes downtime during routine maintenance procedures. Following the recommended maintenance schedule is essential for maximizing equipment life and maintaining warranty coverage.
Daily Maintenance Checks
Scheduled Maintenance Intervals
250-Hour / Monthly Service
500-Hour / Quarterly Service
1,000-Hour / Semi-Annual Service
Fluid Capacities and Specifications
Proper maintenance is critical to maximizing the return on investment from your SY215C excavator. Premier Heavy Equipment’s service team can develop a customized maintenance plan that aligns with your operational schedule and usage patterns, ensuring optimal machine performance throughout its service life.
